Stainless Steel Sanitary Butterfly Valve Manufacturer

Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.

Details about Stainless Steel Sanitary Butterfly Valve Manufacturer

Specification

Size

DN10-DN300, 1/2"-12"

Body&Disc Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +130 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Manual Operation

Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

CE PED / 97/23 / EC, FDA Certification

Handle type

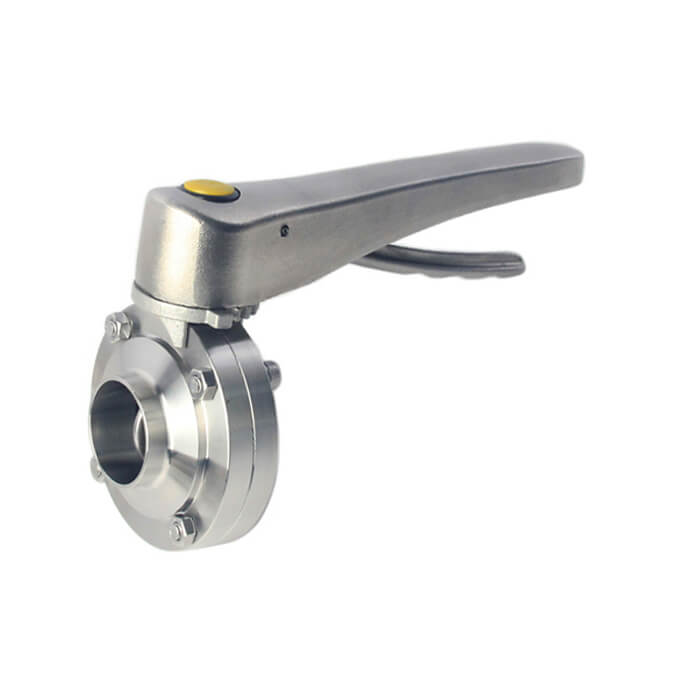

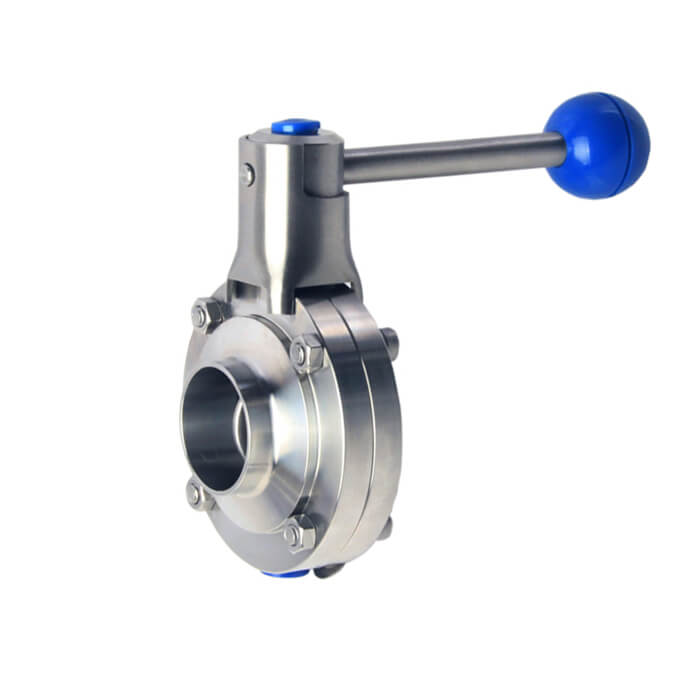

Pull Handle, Plastic Multi-position Trigger Handle, Stainless Steel Multi-position Trigger Handle

Connection type

Clamp End, Thread End, Weld End

Stainless Steel Sanitary Butterfly Valve

Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.



Sanitary Butterfly Valve Feature:

● Forged Stainless steel body & disc in ASI 304 or 316L.
● CNC one-time machining ensures machining precision
● FDA-certified seal materials imported from European: FDA 21 CFR 177.2600, EPDM, PTFE, Silicone, Viton (FPM).
● Interchangeable of the manual handle, pneumatic actuator and electric actuator.
● Suitable for low and medium viscosity fluids.
● Sanitary surface finish, available with BPE standard Ra < 0.4µm (SF1 and SF4).
● Certificates: 3A, FDA, CE PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.



Hygienic Butterfly Valve Construction

The hygienic butterfly valve consists of two valve body, a valve disc, bushings for the disc stem, and a gasket seal ring. The valve is assembled by means of screws and nuts.

Sanitary Butterfly Valve Dimension

Butterfly Valve Seal gasket performance

Sanitary Butterfly Valve Manufacturer in China

Donjoy Technology is sanitary butterfly valve manufacturer in china, manufacture sanitary valve, pump and pipe fittings for more than Meet 27years.Meet USA 3-A,FDA, CE PED,MD BPE standard.

Actuated Sanitary Butterfly Valve

Single action or double action actuated butterfly valve please check this item.



Hygienic butterfly valve packing

Our sanitary butterfly valve use for customer’s brewing project
