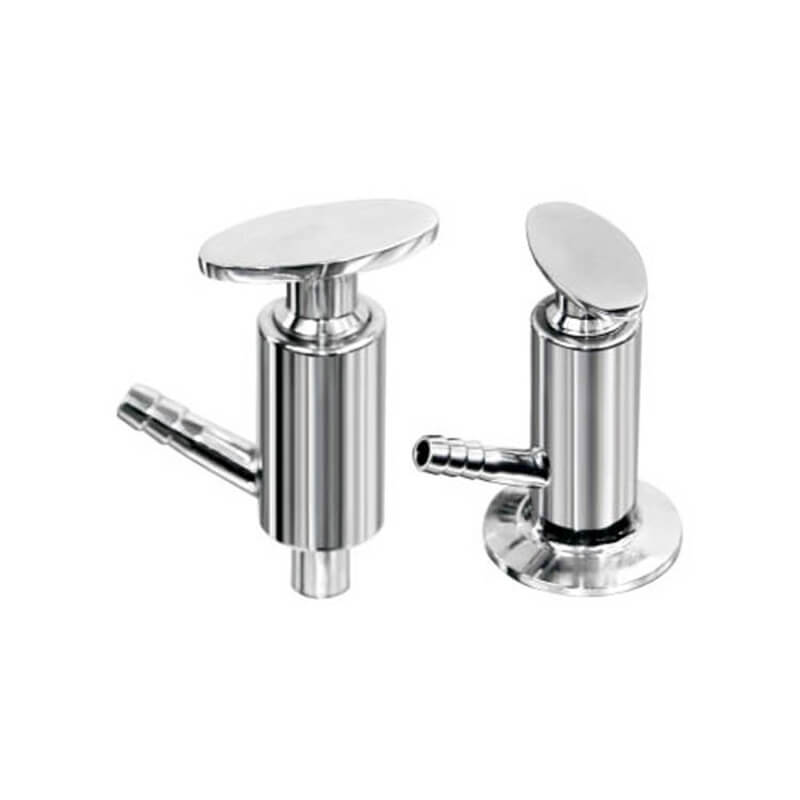

Sanitary Sample Valve

Sanitary Sample Valve is mainly applied to extract the sample from tank or pipeline. They can also be assembled at the bottom of the tank or piping to drain away from the remains. Constructed from hygienic stainless steel.

Details about Sanitary Sample Valve

Specification

Connection Size

1/2" to 2"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

14°F to 248°F (-10°C to 120°C)

Max pressure

145psi (10bar)

Seal

EPDM, PTFE FDA approved

Operation

1)spring return auto-reset handle, 2) removable key handle, 3) pneumatic operation

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Sanitary Sample Valve

Sanitary Sample Valve is mainly applied to extract the sample from tank or pipeline. They can also be assembled at the bottom of the tank or piping to drain away from the remains. Constructed from hygienic stainless steel.



aseptic sampling valves

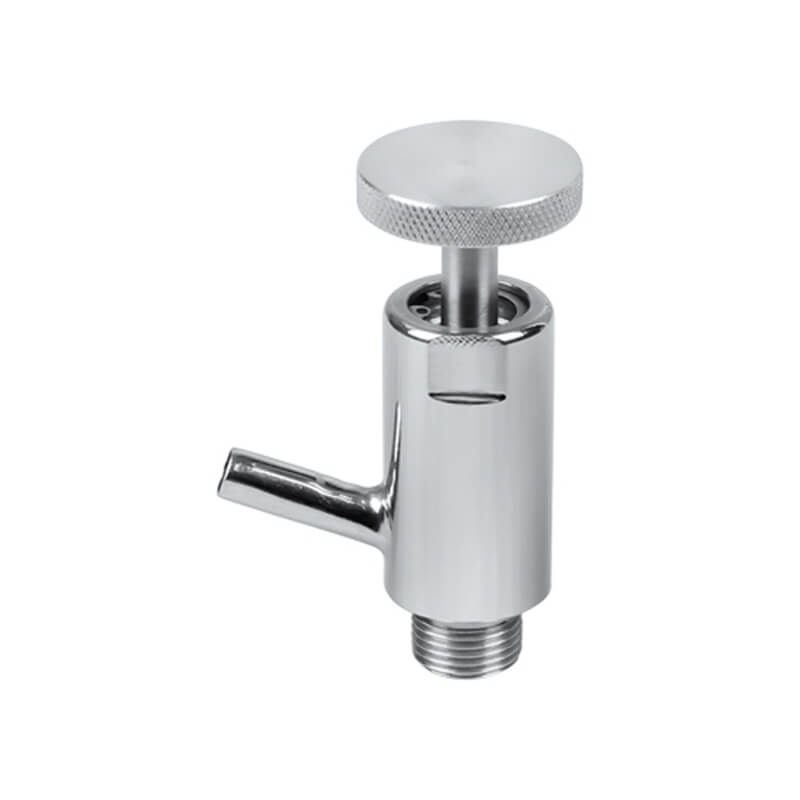

Operating principles

Operating principle:when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the,hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.

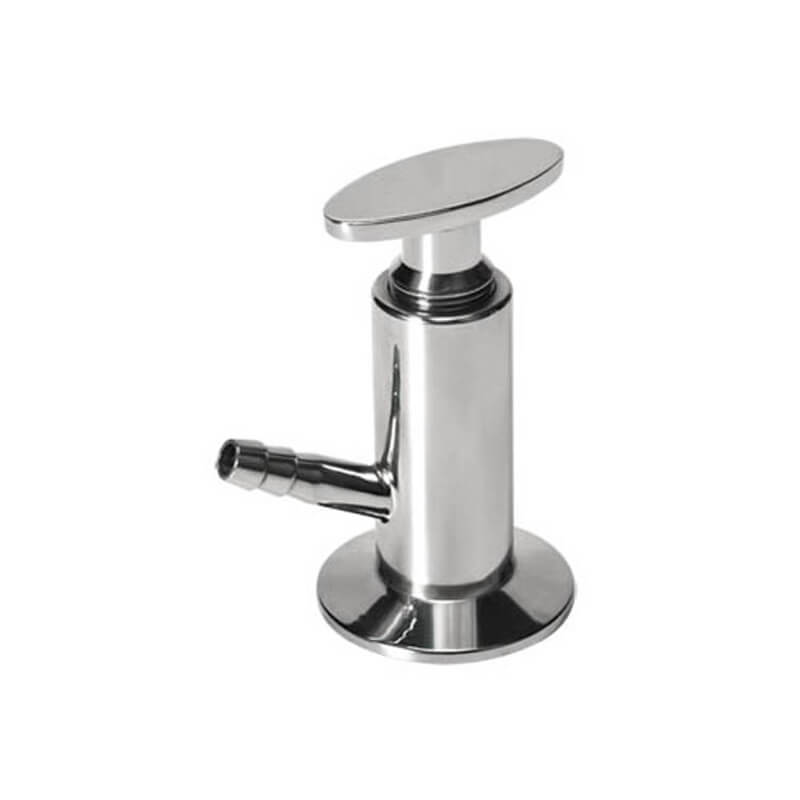

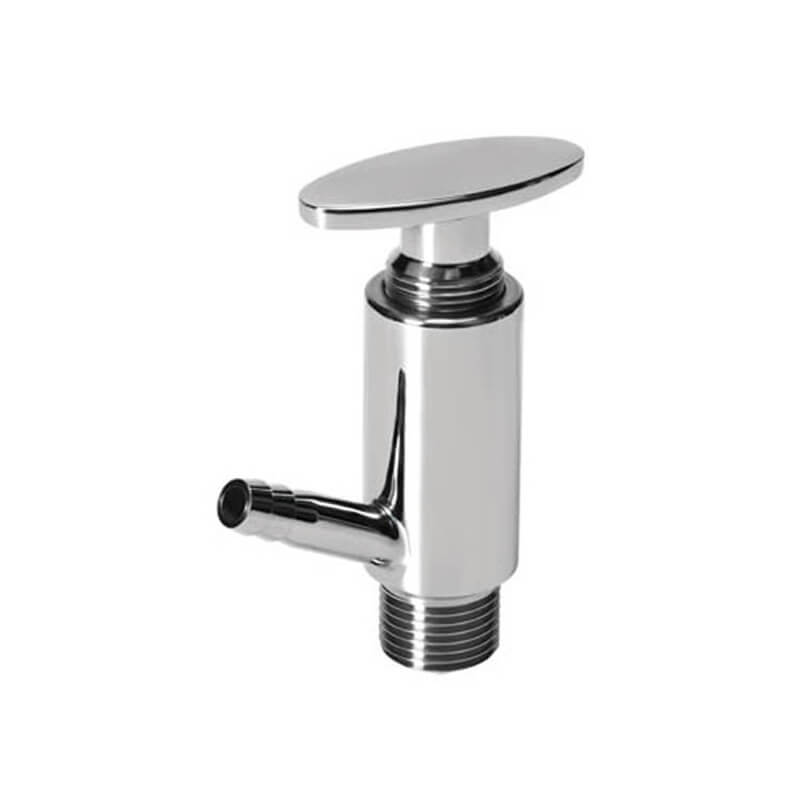

Different configurations for sample valve

sample valves

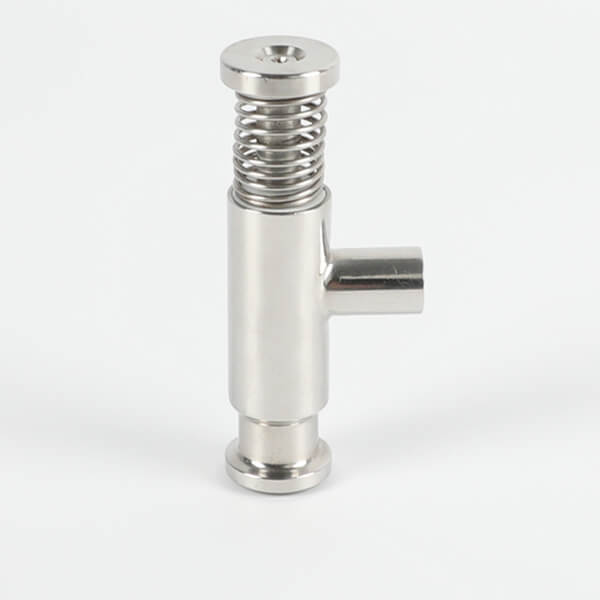

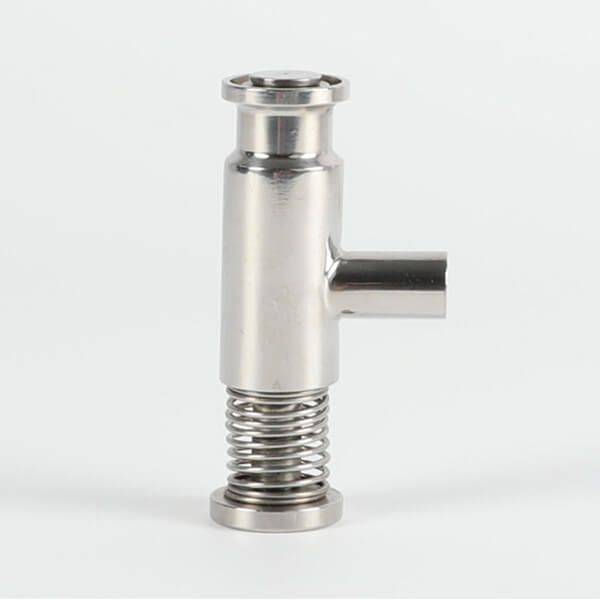

Straight sampling valve and yogurt sampling valve

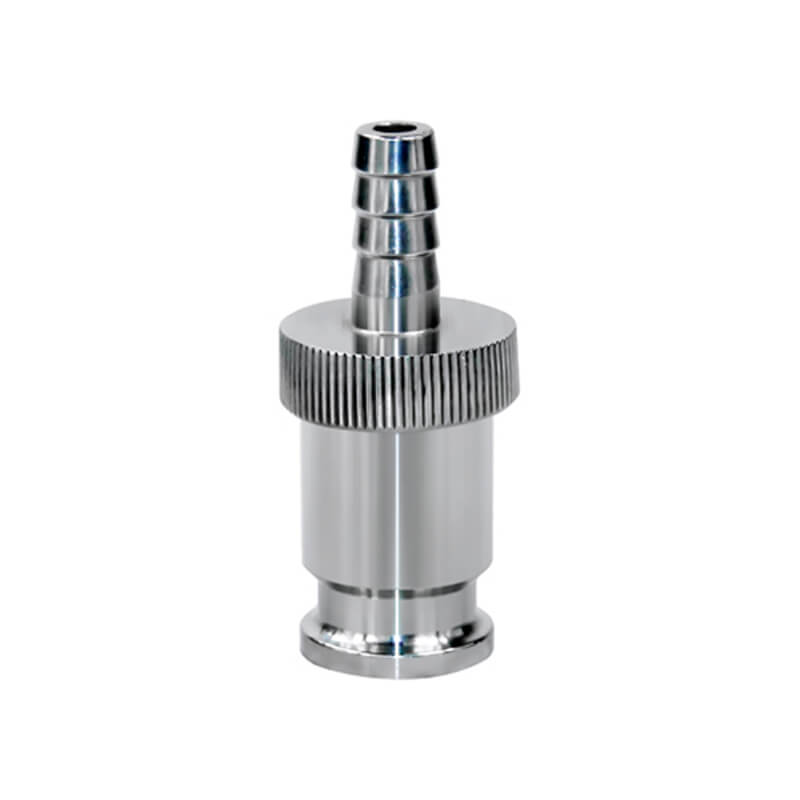

straight sample valve

Hygienic valve packing

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
