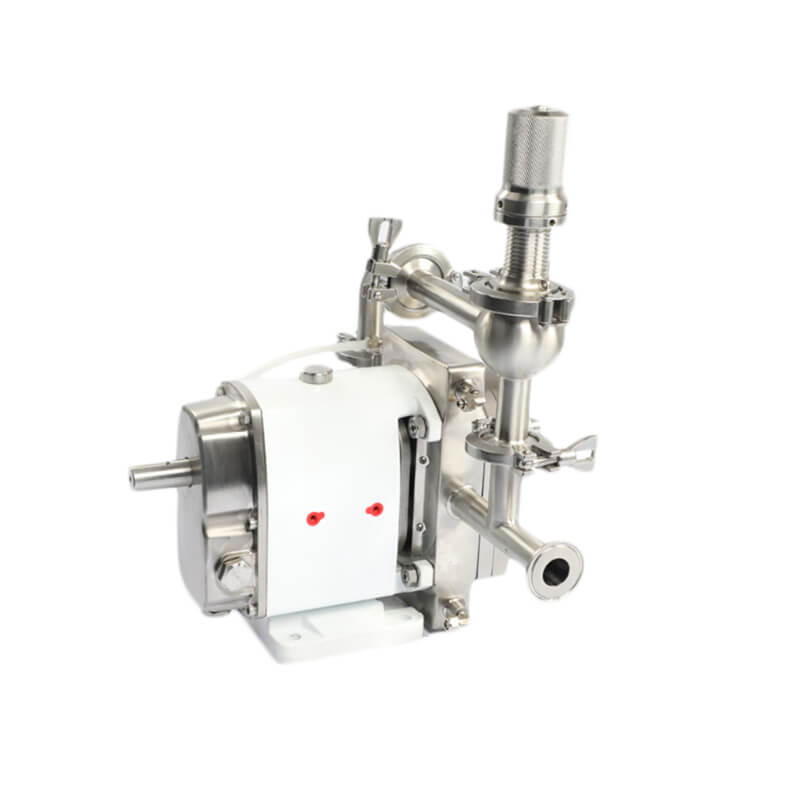

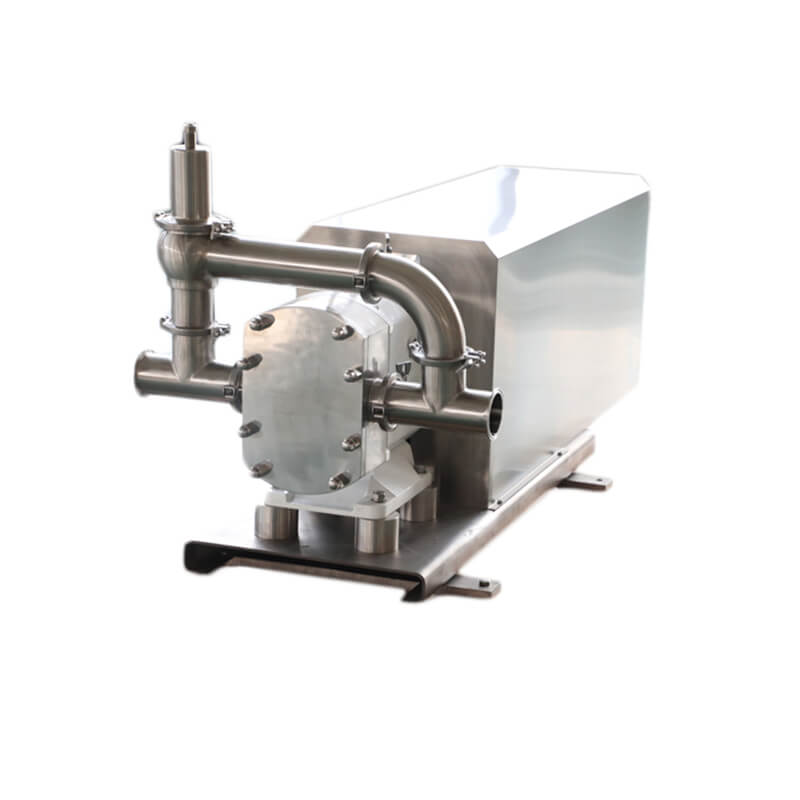

Sanitary Lobe Pump with Heatjacket

Donjoy Sanitary Rotary Lobe Pump is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle,  It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…

Details about Sanitary Lobe Pump with Heatjacket

Specification

Maximum Flow Rate

50 m³/h

Maximum pressure

150M(15bar)

Max speed

750 rpm

Body Material

AISI 304 (1.4301), AISI 316L (1.4404)

Body Types

Horizontal Type (TUL) & Vertical Type (TUR)

Mechanical Seal

single seal SIC/SIC/EPDM (standard), double mechanical seal (option)

Motor Power Supply

0.75KW-18.5KW wide voltage

Motor Brand

ABB motor, Simens Beide motor ,standard IEC

Inlet & Outlet Sizes

1"-4" (DN25-DN100)

Max Temperature

150℃/302°F

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Sanitary Lobe Pump with Heatjacket

Donjoy Sanitary Rotary Lobe Pump is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle,  It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…



Sanitary Lobe Pump with Heatjacket Description

Donjoy rotary lobe pumps provide reliable performance, trouble-free operation and superior energy efficiency for demanding applications. Donjoy lobe pump has many configurations, TU-series is standard configuration, STU-series is all stainless steel. It is an excellent choice for duties that require contamination-proof pumps to meet high standards of hygiene, low-shear and low-pulsation operation. This 3-A approved pump handles both Cleaning in Place and Sterilization in place, and can be supplied with thorough documentation to support rigorous validation requirements.

Rotary Lobe Pump with heat jacket is widely used for transporting medium which is easily frozen or solidified at room temperature, such as chocolate, candy, molasses…According to the process requirement, it could be equipped with front cover insulation or surrounding insulation structure.

Sanitary Rotary Lobe Pump Structure

Sanitary Rotary Lobe Pump Configuration



Sanitary Rotary Lobe Pump Feature:

● High Purity, Low Noise
● High pressure to 20 bar
● Horizontal Type (TUL) & Vertical Type (TUR)
● Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
● Hygienic designed according to 3A FDA standard
●Sanitary mechanical seal, easy cleaning and maintenance
● Applied to CIP cleaning and SIP sterilization
● Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable – frequency motor adjustment
3) Fixed speed output transmission
● Motor utilize the IEC EN IE2, PTC thermistor.

Rotor Selections for sanitary rotary lobe pump

  1. Butterfly Rotor: Suitable for transporting material, with low particle breakage rate and small pulse.(Recommend)
  2. 3-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate and smaller pulse than butterfly rotor
  3. Spiral Self-priming Rotor: With strong self-priming capability could transport with particle, gas-liquid, mixture, oil, dairy products, etc. It also extracts and transports all kinds of sewage, sluge, cow dung.
  4. Single Butterfly Rotor: Suitable for transporting material with large particle, with low particle breakage rate for large particle, large pulse, low pressure and small volume.
  5. 2-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate, large pulse, low pressure and small volume.
  6. 5-Leaves Rotor: Suitable for transporting all kinds of material, with high particle breakage rate, very small pulse and smaller flow.

Sanitary Rotary Lobe Pump Rotors2

Lobe Pump Various Configurations

Sanitary Rotary Lobe Pump Configuration1

Sanitary Rotary Lobe Pump Configuration2

Sanitary Rotary Lobe Pump Configuration3

Sanitary Rotary Lobe Pump Curve

Sanitary Rotary Lobe Pump Curve

Sanitary Rotary Lobe Pump Dimension

Sanitary Rotary Lobe Pump TUL Dimension

Hygienic pump packing
