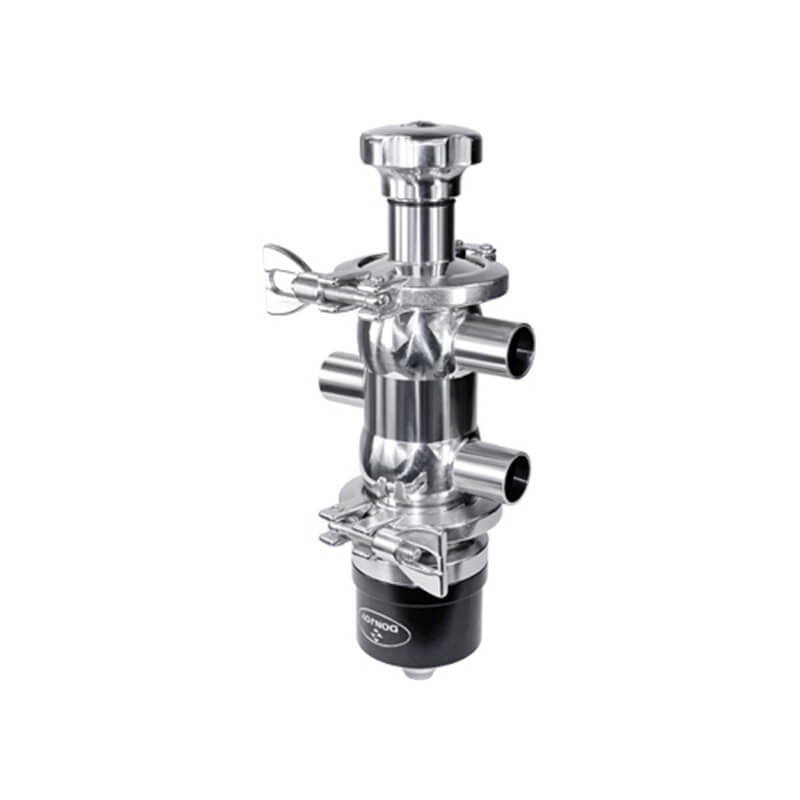

Radial Diaphragm Valve

Donjoy Radial Diaphragm Valve mainly used in pharmaceutical, biotech,  health care, cosmetic and food industries. In the pharmaceutical industry, the valve can be used as a process control valve, dosing valve, sampling valve and aseptic drain valve etc. It has the manual type and pneumatic type.

Details about Radial Diaphragm Valve

Specification

Size

DN10-DN65, 1/2" to 3"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L

Temperature

-20℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

EPDM, FKM, PTFE

Operation

Manual, pneumatic

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Radial Diaphragm Valve

Donjoy Radial Diaphragm Valve mainly used in pharmaceutical, biotech,  health care, cosmetic and food industries. In the pharmaceutical industry, the valve can be used as a process control valve, dosing valve, sampling valve and aseptic drain valve etc. It has the manual type and pneumatic type.

radial diaphragm valve



Sanitary Radial Diaphragm Valve Feature:

● New diaphragm design
● Simple maintenance, easy to operate.
● Self-emptying function.
● Dead leg minimization
● Excellent KV value
● CIP/SIP sterilization and cleaning
● There are more than 20 types of valve body combinations.
● Diaphragm seal complies with FDA certification.

Operation:

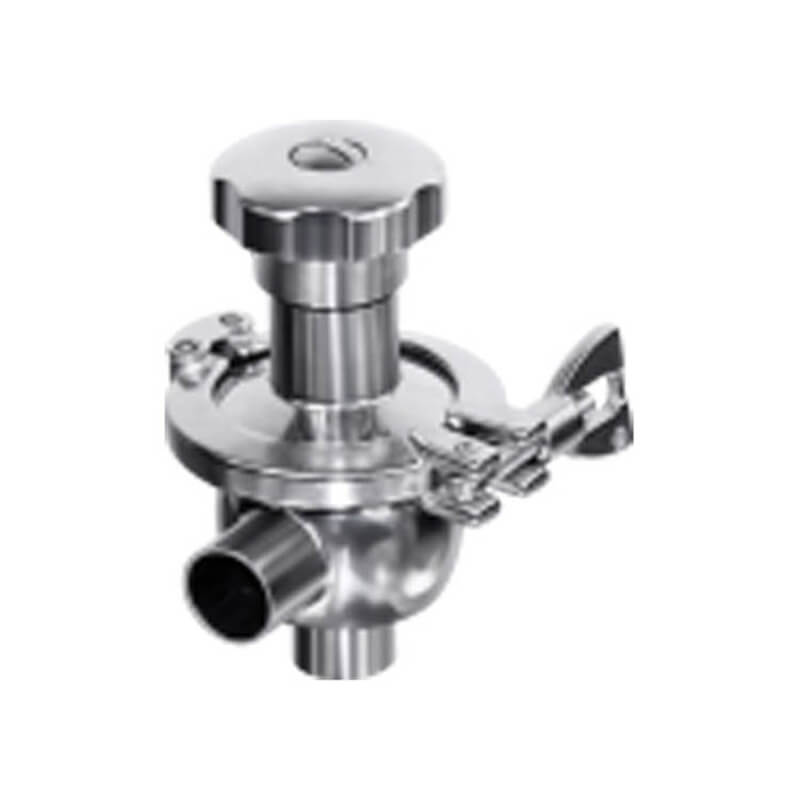

● Stainless handwheel

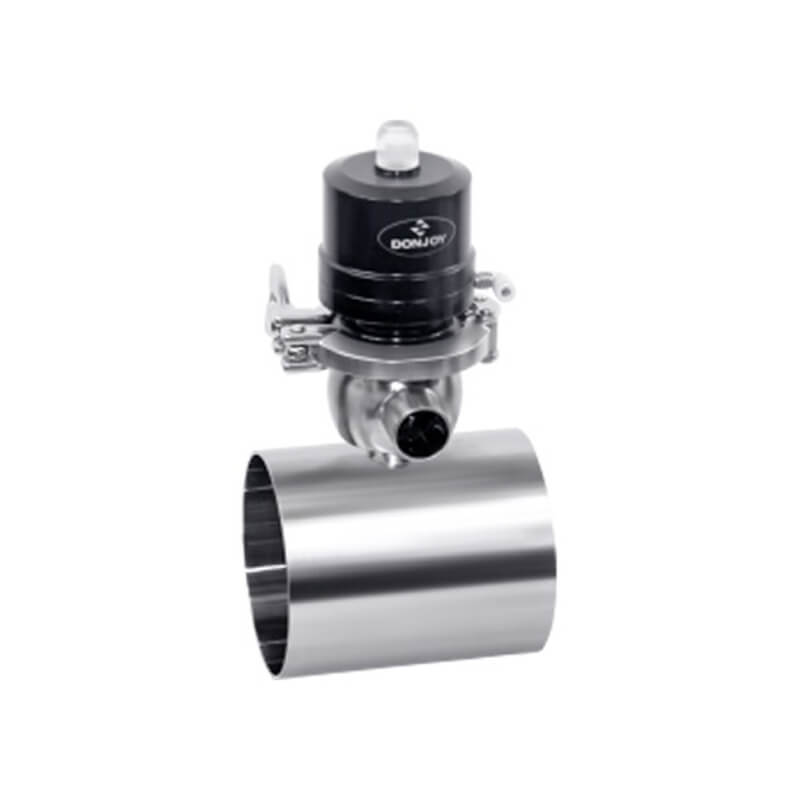

● Pneumatic actuator



Hygienic Radial Diaphragm Valve Body Combination

radial diaphragm valve body combination

DONJOY Radial Diaphragm Valve Dimension

radial diaphragm valve dimension



Hygienic valve packing

Our sanitary diaphragm valve use for customer’s pharmaceutical project

Diaphragm Valve Use for Customers ProjectDiaphragm Valve Use for Customers Project 2
