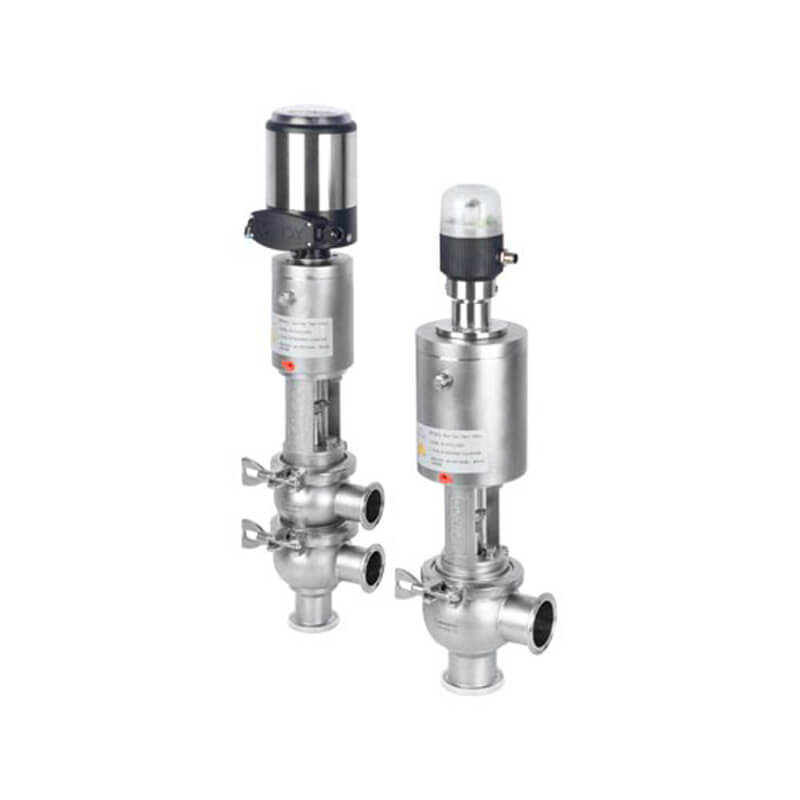

Pneumatic Shut-Off Valve with Positioner

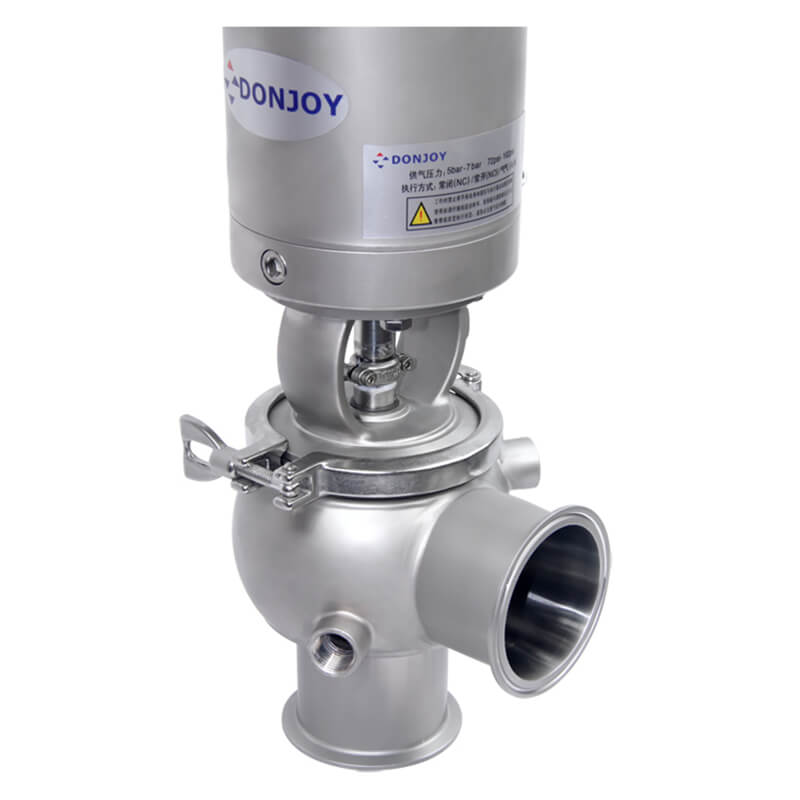

Pneumatic Double Seat Shut-Off Valve with stainless steel actuator, automated control by Smart Valve Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy, beverage, pharmaceutical and fine chemicals industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.
Details about Pneumatic Shut-Off Valve with Positioner
Specification
| Size | DN25-DN100, 1"-4" |
|---|---|
| Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | -30℃ to +150 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Pipe Joint Systems | DIN SMS RJT 3A ISO IDF |
| Manual Operation | Stainless steel handwheel, Stainless steel actuator, Positioner |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Tri-Clamp End, Thread End, Butt Weld End |

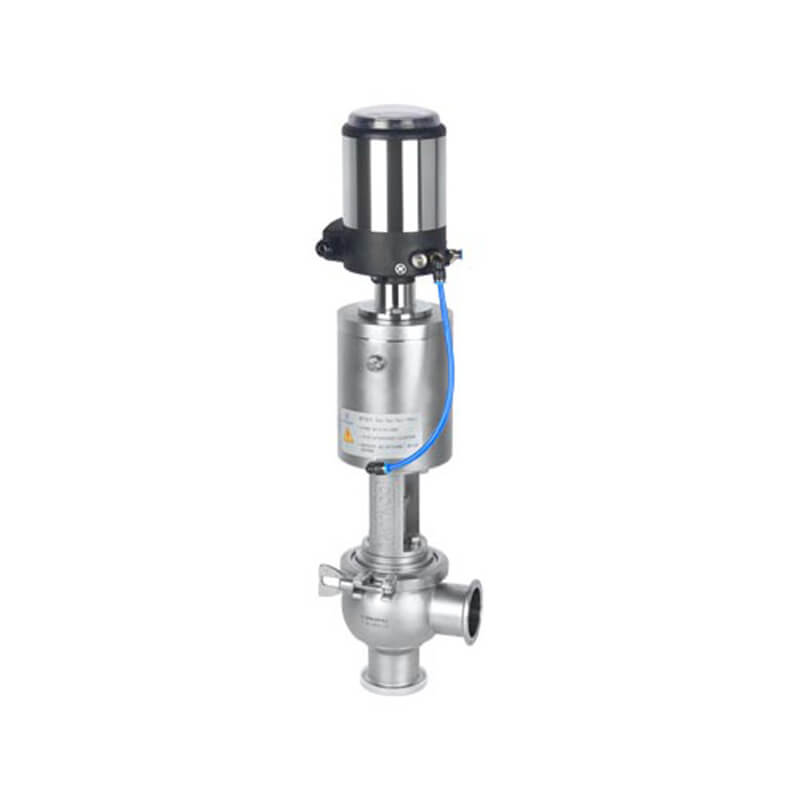

Pneumatic Shut-Off Valve with Positioner

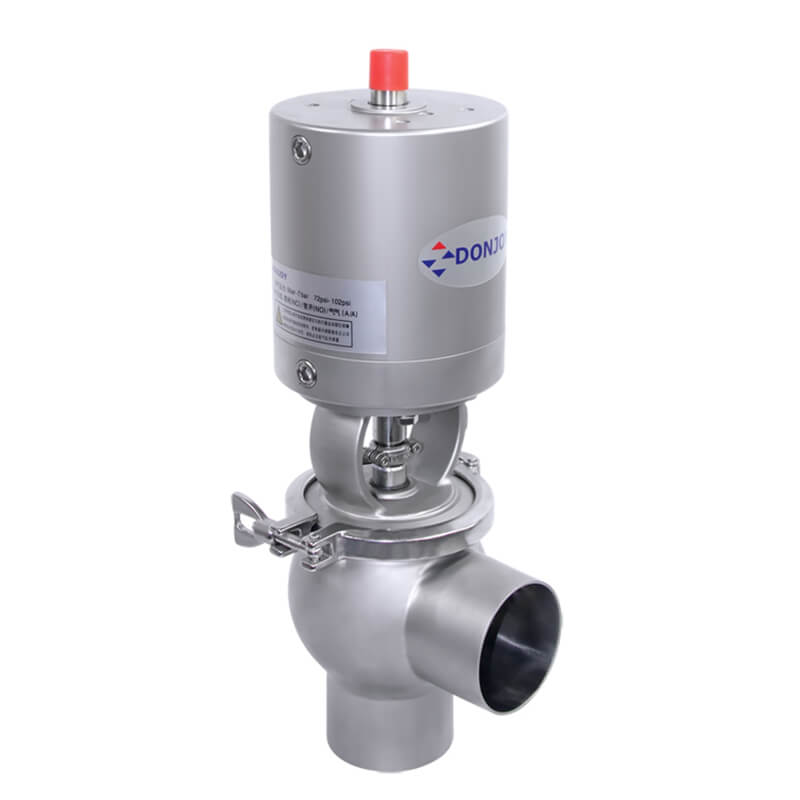

Pneumatic Double Seat Shut-Off Valve with stainless steel actuator, automated control by Smart Valve Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy, beverage, pharmaceutical and fine chemicals industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.
Shut-off Valve Positioner Specification
● Support: MODE BUS RS485
● Input:0/4-20mA with feedback version 0–5/10V
● Single-acting (standard), Double acting (option)
● One-touch auto-tuning function valve position
● Support for manual operation
● Power supply: DC 24V ± 10%
● Size: 1″-12″, DN10-DN300
● Material: 304 / 316L
● Pressure: 10bar
● Temperature: 130 ℃
● Inner surface roughness: Ra0.4μm (option)
● Connection: Weld, Clamp, Thread, Flange and Other standards
Shut-off Valve Feature:
● Unique design, sterile, no dead angle
● Compact and robust design, 360° adjustable body.
● Normally closed (NC) as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.
● Easy assembly/disassembly by loosening clamp in the middle of the valve body
● Hygienic design according to US 3-A standard
● Manual handwheel, pneumatic actuator are interchangeable.
● A wide selection of different body combinations.
● 100% hydraulic tested / 100% inspected
Operations
● Handles
Stainless steel handwheel
● Actuators
Stainless steel actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Stroke Limiter
C-top control (on/off control)
IL-top control (Positioner)
Diaphragm Actuator
Pneumatic Shut-Off Valve Dimension
Hygienic Pneumatic Double Seat Shut-Off Valve packing
Our sanitary Pneumatic Shut-Off Valve use for customer’s project
