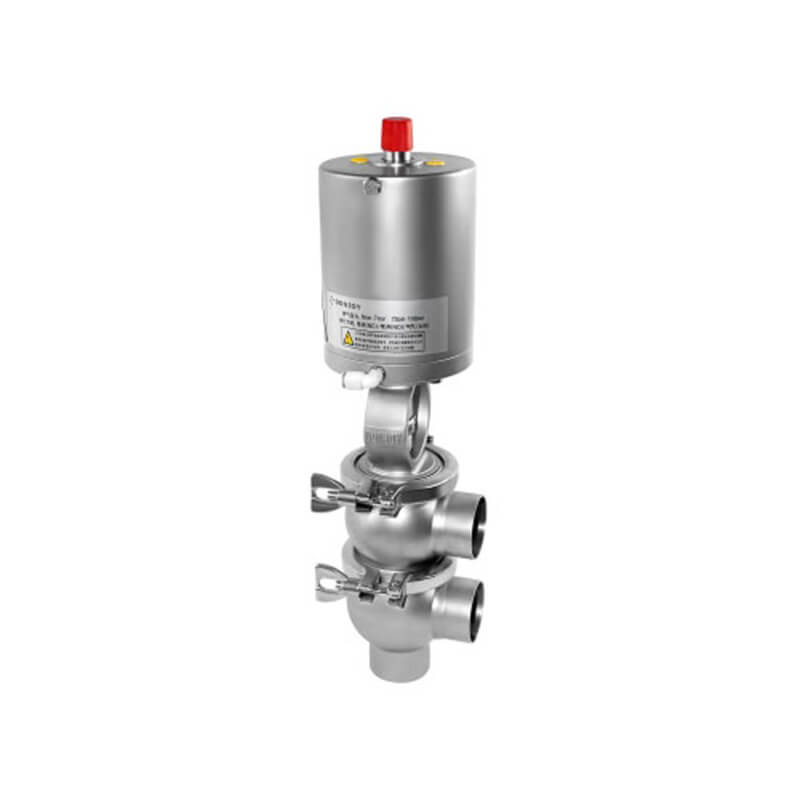

Pneumatic Double Seat Shut-Off Valve

Pneumatic Double Seat Shut-Off Valve with stainless steel actuator. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy, beverage, pharmaceutical and fine chemicals industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.

Details about Pneumatic Double Seat Shut-Off Valve

Specification

Size

DN25-DN100, 1"-4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Manual Operation

Stainless steel handwheel, Stainless steel actuator, Positioner

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clamp End, Thread End, Butt Weld End

Pneumatic Double Seat Shut-Off Valve

Pneumatic Double Seat Shut-Off Valve with stainless steel actuator. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy, beverage, pharmaceutical and fine chemicals industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.



Shutoff valves

Feature:

● Unique design, sterile, no dead angle
● Compact and robust design, 360° adjustable body.
● Normally closed (NC) as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.
● Easy assembly/disassembly by loosening clamp in the middle of the valve body
● Hygienic design according to 3A standard
● Manual handwheel, pneumatic actuator are interchangeable.
● A wide selection of different body combinations.
● 100% hydraulic tested / 100% inspected

Operations

● Handles

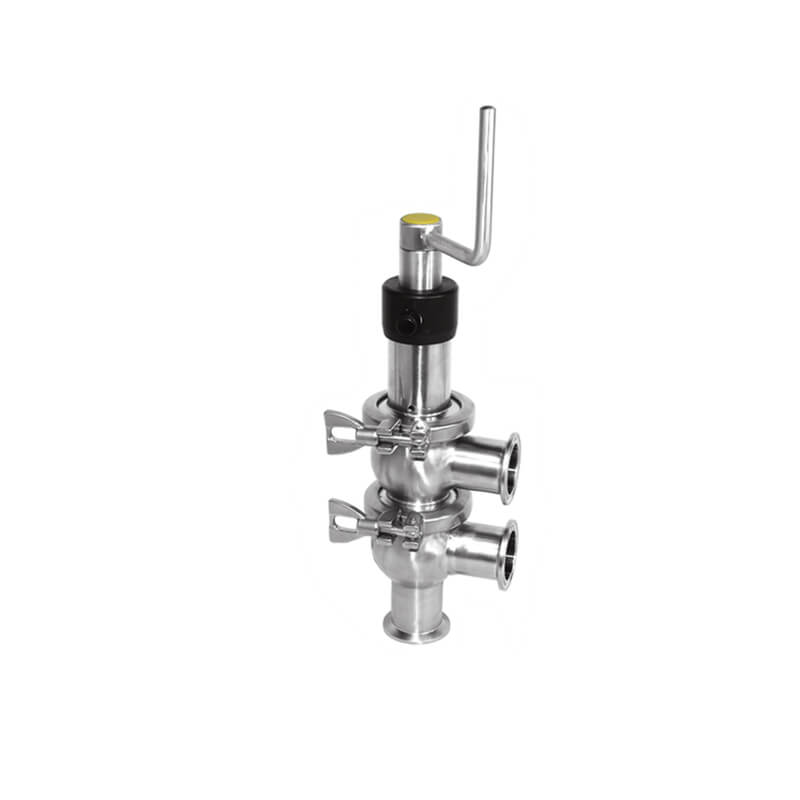

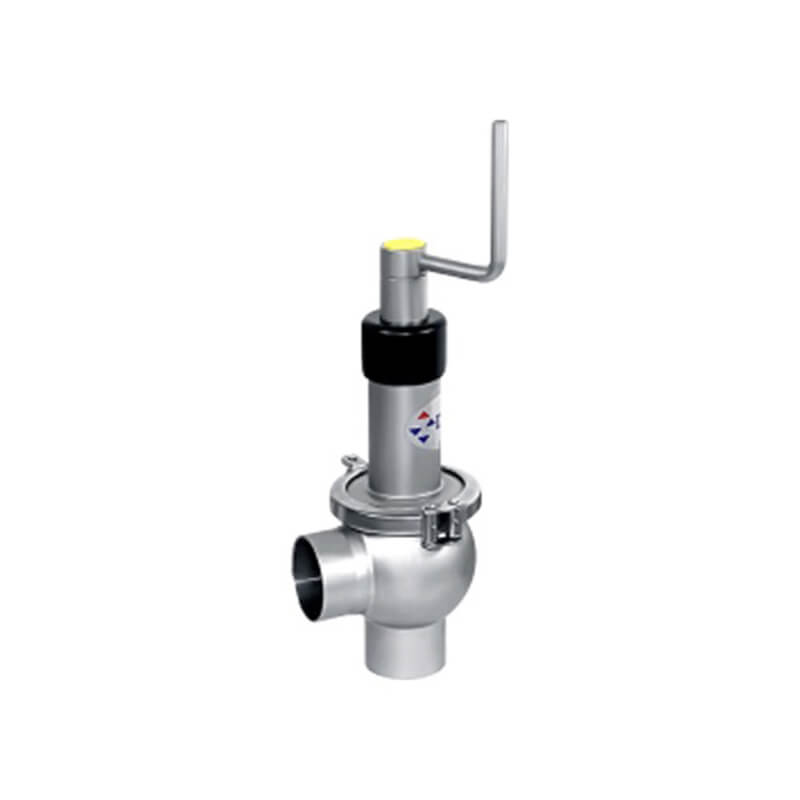

Stainless steel handwheel
Fine-tuning handwheel
● Actuators
Stainless steel actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Stroke Limiter
C-top control (on/off control)
IL-top control (Positioner)
Diaphragm Actuator

Shutoff valves feature 2

Shutoff valves feature

Shutoff valve configuration

Shutoff valves configuration



Pneumatic Shut-Off Valve part list

shutoff valve parts list

Pneumatic Shut-Off Valve Dimension

single seat shutoff valve dimension

Hygienic Pneumatic Double Seat Shut-Off  Valve packing

Our sanitary Pneumatic Shut-Off Valve use for customer’s project

shut off valve for customers projectshut off valve for customers project2
