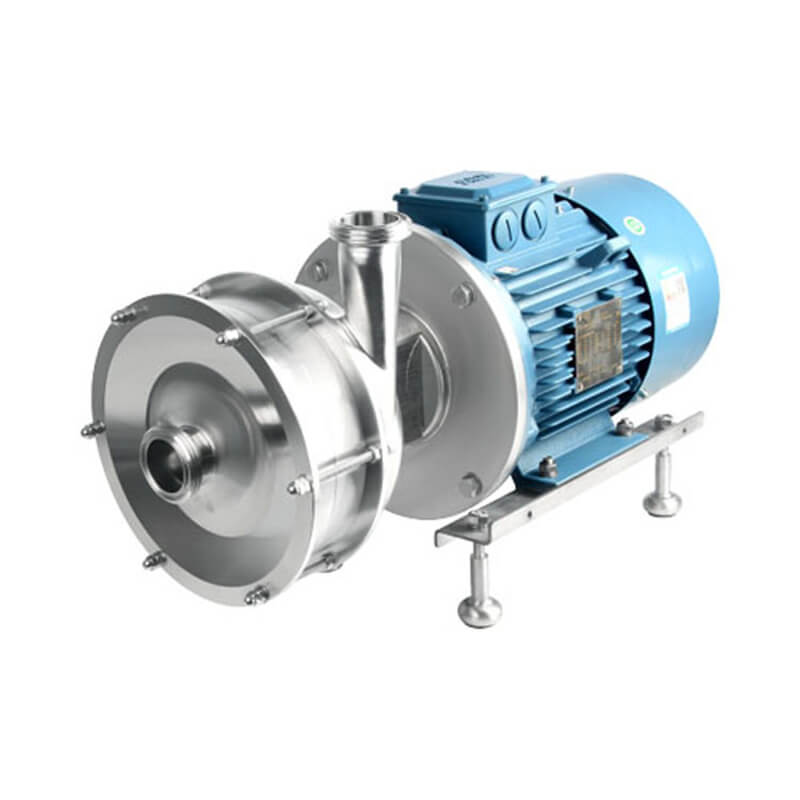

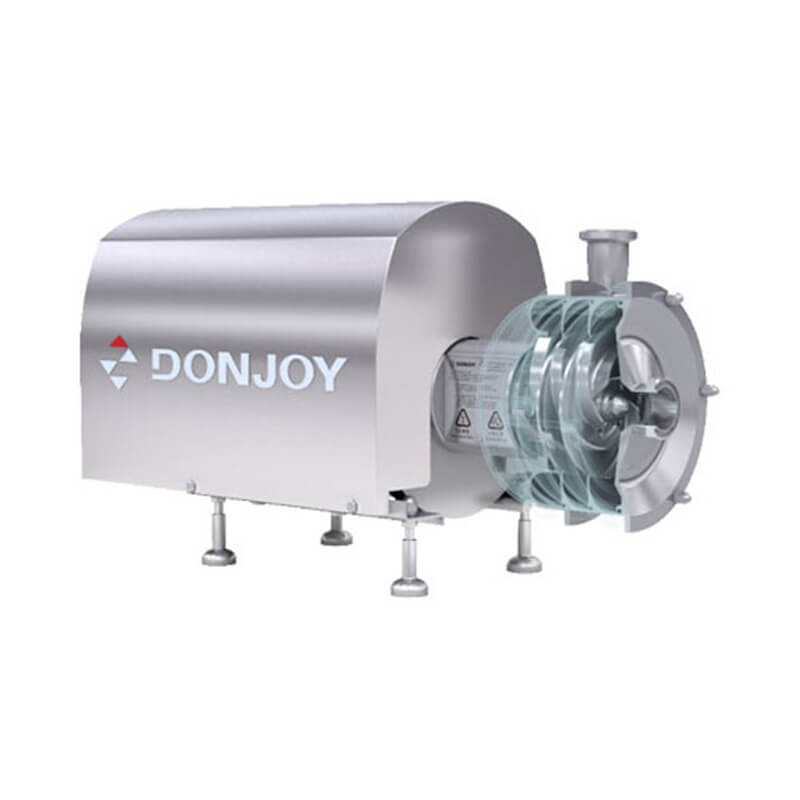

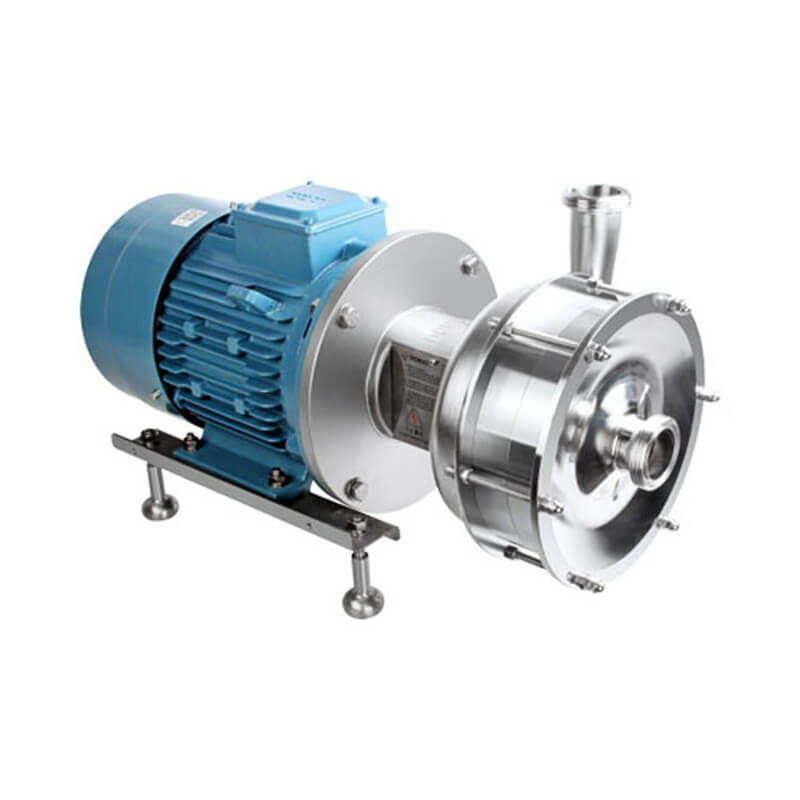

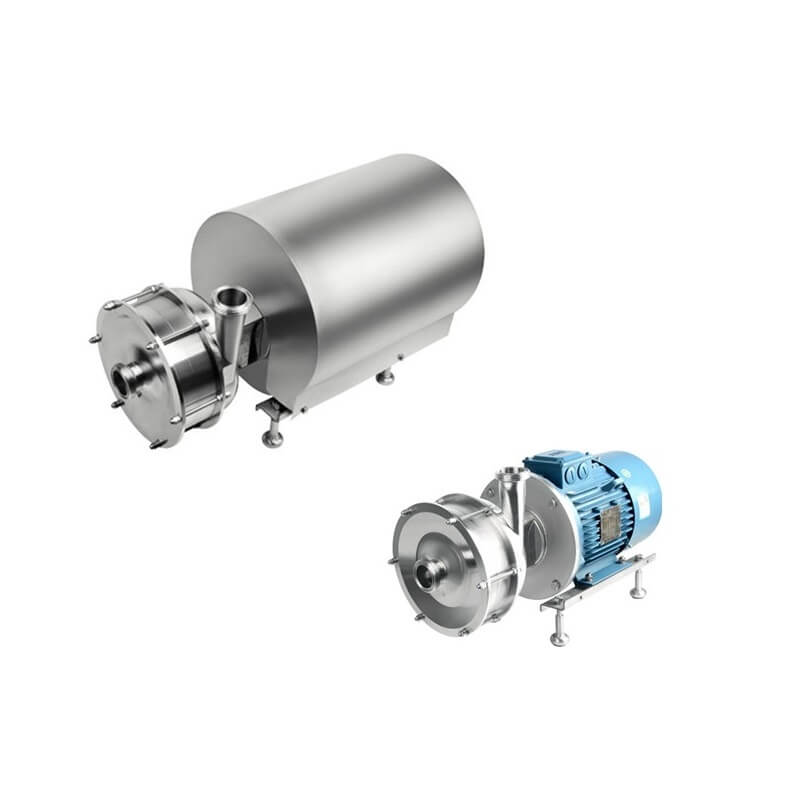

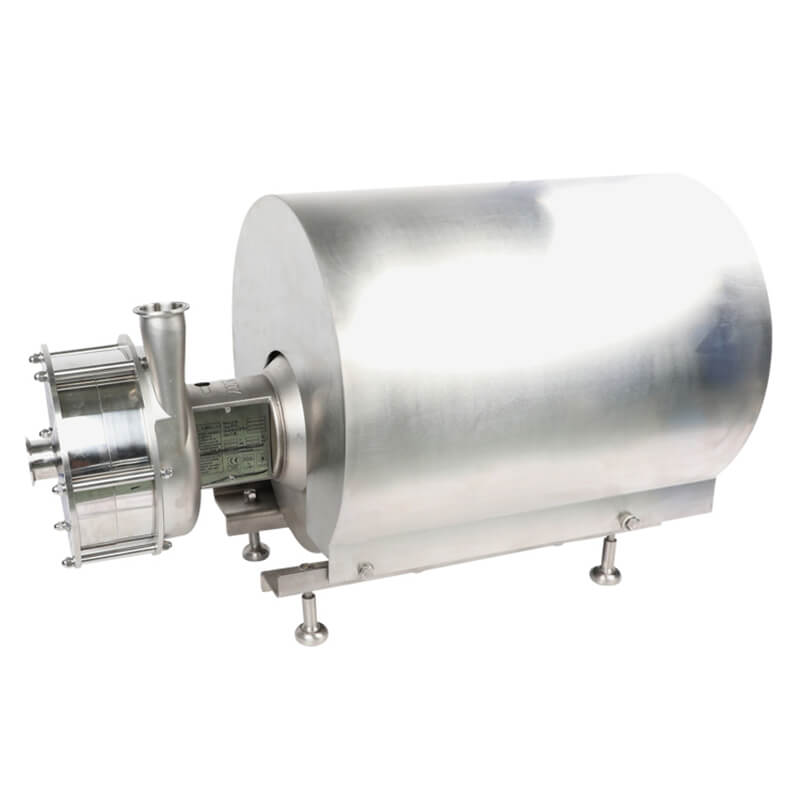

Multi-stage Centrifugal Pump

Donjoy Sanitary Multi-stage Centrifugal Pump is a horizontal multi-stage open impeller centrifugal pump with high purity and high performance. Used to transfer low viscosity fluids at a high flow rate and high pressure, Maximum head up to 180 meters (18bar). Sanitary design, complied with US 3-A, FDA standard. It widely used in food and beverage, dairies, water(WFI injection water), pharmaceutical and fine-chemicals industries…

Details about Multi-stage Centrifugal Pump

Specification

Flow rate

50 m³/h

Maximum lift head

180M(18bar)

Body Material

AISI 304 (1.4301), AISI 316L (1.4404)

Seal

single mechanical seal SIC/C/EPDM (standard), double mechanical seal (option),

Motor Power Supply

1.1KW-45KW wide voltage 2P

Motor Brand

ABB motor, Simens Beide motor ,standard B35, IEC

Temperature

-10 to 140°C

Inlet & Outlet Sizes

1 1/2"-3" (DN40-DN80)

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

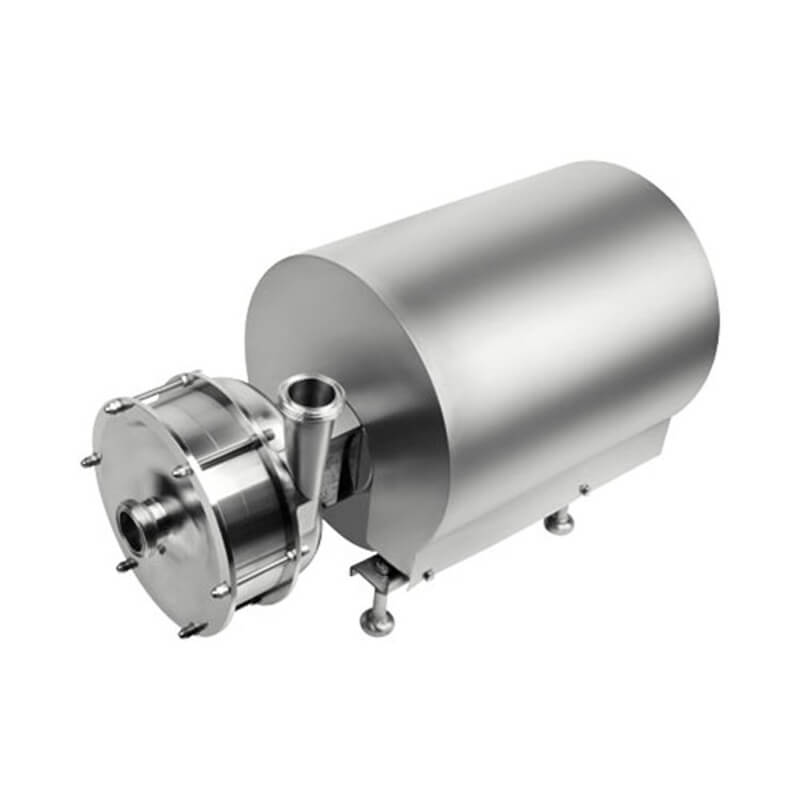

Sanitary Multi-stage Centrifugal Pump

Donjoy Sanitary Multi-stage Centrifugal Pump is a horizontal multi-stage open impeller centrifugal pump with high purity and high performance. Used to transfer low viscosity fluids at a high flow rate and high pressure, Maximum head up to 180 meters (18bar). Sanitary design, complied with US 3-A, FDA standard. It widely used in food and beverage, dairies, water(WFI injection water), pharmaceutical and fine-chemicals industries…



Sanitary Multi-stage Centrifugal Pump Structure

Sanitary Muti stage Centrifugal Pump Construction

Sanitary Multi-stage Centrifugal Pump Feature:

● High-lift up to 180 meters, low noise, high flow, no dead ends, high-performance
● Pure stainless steel design, complied with ASME BPE and EHEDG standards.
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Flushed single or double mechanical seal.
● Easily maintenance, no need special tools and staff.
● Compatible with single and double mechanical seal, easy to change.
● With stainless steel base plate & adjustable feet.
● The motor utilizes the IEC EN IE2.



Sanitary Multi-stage Centrifugal Pump Mechanical Seal

Sanitary Muti stage Centrifugal Pump Mechanical Seal

Donjoy Technology is Multi-stage Centrifugal Pump manufacturer in China, manufacture sanitary pump and valve more than 27years. The Multi-stage Centrifugal Pump mechanical seal is cooperative researched and developed with European Swedish company. The mechanical seal is designed with pressure balance and super long working  life, easily disassemble and maintenance without special tools. Complied with EU EHEDG, USA 3-A-02-11, FDA1772600.

Mechanical seal configurations:

  1. SIC/C/EPDM  Standard others are options
  2. SIC/C/FKM
  3. SIC/C/HNBR
  4. SIC/SIC/EPDM
  5. SIC/SIC/FKM
  6. SIC/SIC/HNBR
  7. TC/TC/EPDM
  8. TC/TC/FKM
  9. TC/TC/HNBR



Sanitary Multi-stage Centrifugal Pump Curve

Sanitary Multi stage Centrifugal Pump Curve1

Sanitary Multi stage Centrifugal Pump Curve2



Hygienic centrifugal pump packing

Sanitary Centrifugal Pump use for customer’s project

Sanitary Centrifugal Pump use for customers project20190423 174501

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
