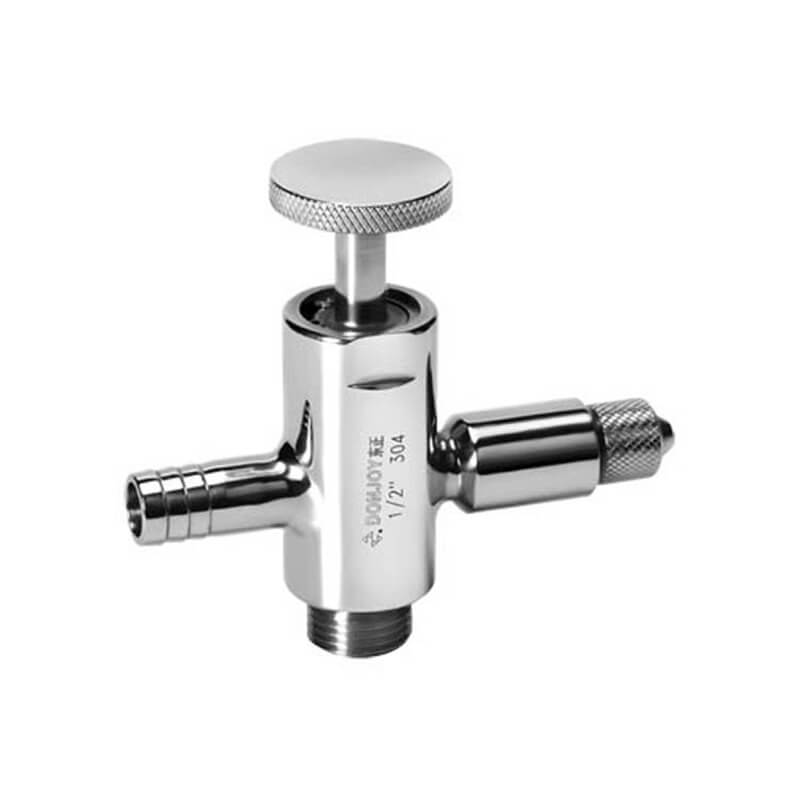

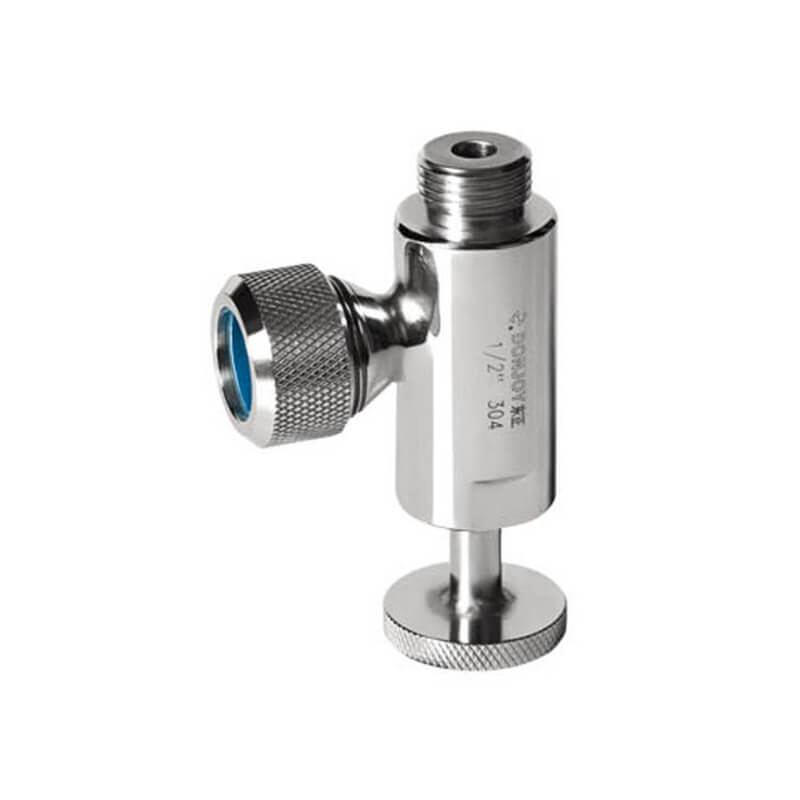

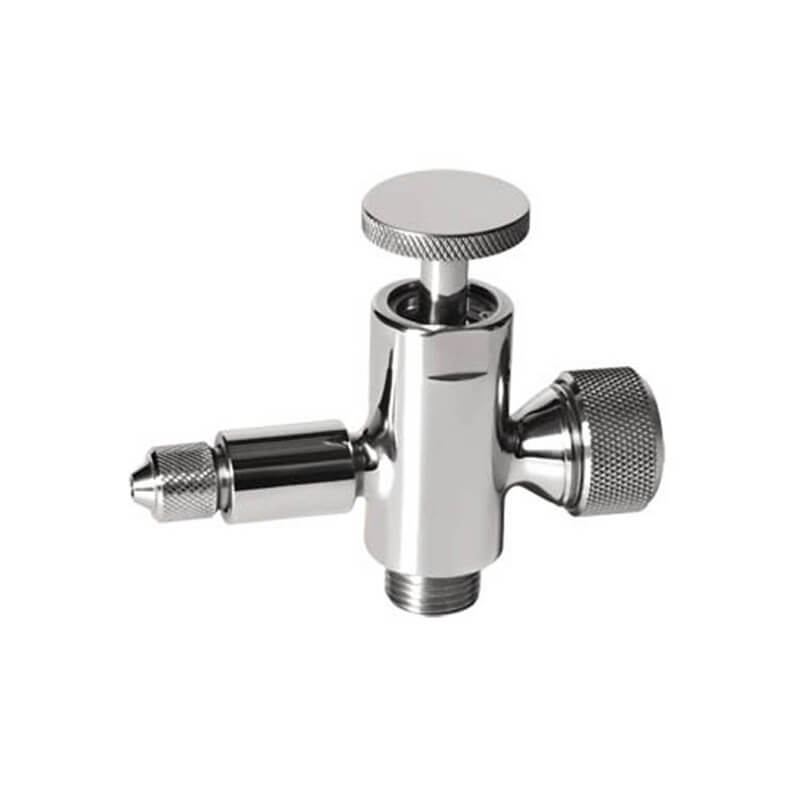

Liquid Level Gauge

The level gauge is mainly applied to the tank equipment. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be observed and the sample can be extracted. Constructed from hygienic stainless steel.

Details about Liquid Level Gauge

Specification

Connection Size

1/4",3/8",1/2",3/4"

Body Material

AISI 316L

Temperature

14°F to 248°F (-10°C to 120°C)

Max pressure

145psi (10bar)

Seal

PTFE FDA approved

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Liquid Level Gauge

The level gauge is mainly applied to the tank equipment. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be observed and the sample can be extracted. Constructed from hygienic stainless steel.

Size:1/4″,3/8″,1/2″,3/4″
Connections: thread, clamp, weld
Certificate: CE PED 2014/68/EU, FDA 177.2600

aseptic sampling valves

Operating principles

when turning the handwheel clockwise, the valve shaft and seal rise up. At this time, the valve is open for sampling. When turning the handwheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.

level guage
level guage

Hygienic valve packing

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
