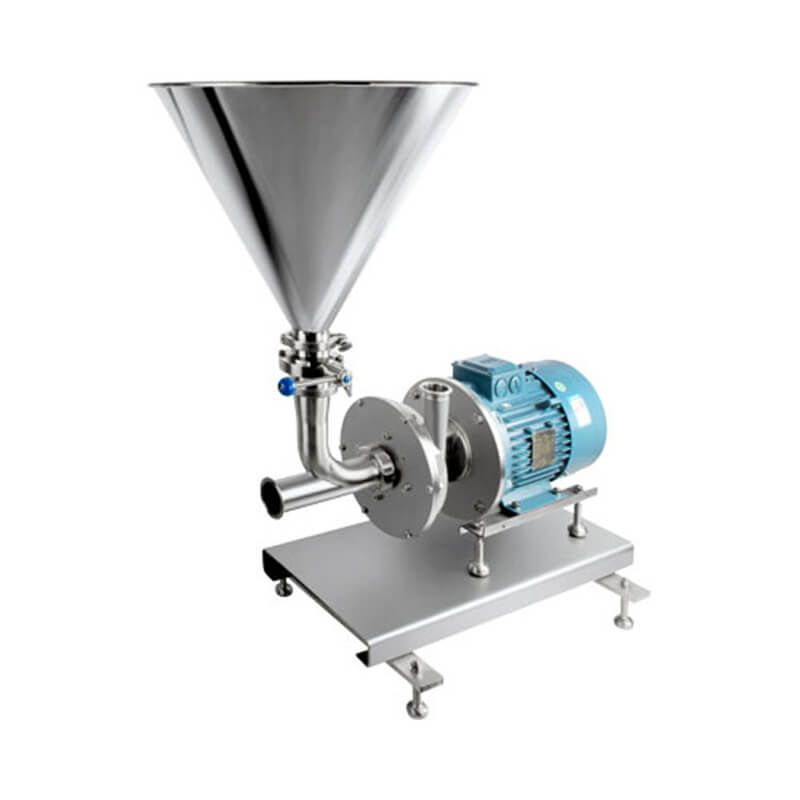

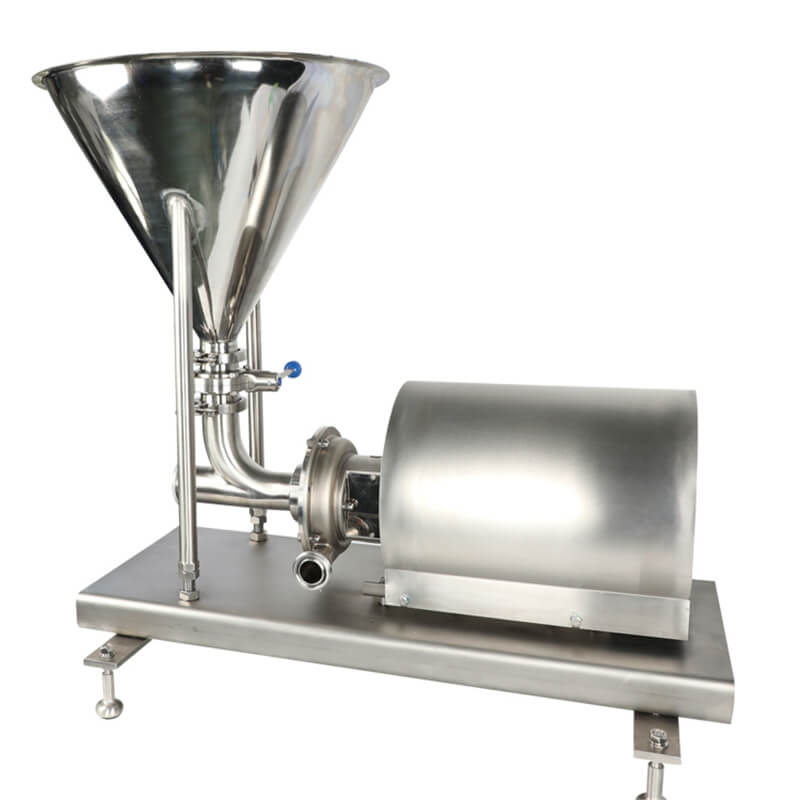

Inline Single-Stage Homogenizer Emulsification Pump

Donjoy Inline High Shear Homogenizer Emulsifier Pump is consist of stator and rotor, It’s single-stage or three-stage inline dispersing emulsification equipment. The materials are dispersed, sheared, refined, crushed, emulsified, mixed and homogenized by 6-10 layers of rotor and stator. The material refinement to 60 GRIT about 300μm. Hygienic design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. It commonly used in dairy, food processing, beverage, pharmaceutical, cosmetic and fine-chemicals industries…

Details about Inline Single-Stage Homogenizer Emulsification Pump

Specification

Flow rate

40 m³/h

Body Material

AISI 316L (1.4404)

Mechanical Seal

single mechanical seal SIC/C/EPDM, double mechanical seal (recommend),

Max Power

45KW wide voltage 2P

Motor Brand

ABB motor, Simens Beide motor ,standard B35, IEC

Temperature

-20 to 140°C

Inlet & Outlet Sizes

1 1/2"-3" (DN40-DN80)

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Inline Homogenizer Emulsification Pump

Donjoy Inline Homogenizer Emulsification Pump is consist of stator and rotor, It’s single-stage or three-stage inline dispersing emulsification equipment. The materials are dispersed, sheared, refined, crushed, emulsified, mixed and homogenized by 6-10 layers of rotor and stator. The material refinement to 60 GRIT about 300μm. Hygienic design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. It commonly used in dairy, food processing, beverage, pharmaceutical, cosmetic and fine-chemicals industries…



Inline High Shear Homogenizer Emulsifier Pump Structure

Inline High Shear Homogenizer Pump Structure

Inline Homogenizer Emulsification Pump Feature:

● Continuous large production capacity, materials 100% through the dispersing and shearing.
● Hygienic stainless steel design
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Easily maintenance, no need special tools and staff.
● No damage when starting the test, even if there is a brief reverse rotation
● Compatible with single and double mechanical seal, easy to change.

Inline High Shear Homogenizer Pump Stator
Inline High Shear Homogenizer Pump Stator and rotor gap are 0.5mm.



Inline Homogenizer Emulsification Pump Mechanical Seal

Inline High Shear Homogenizer Pump Mechanical Seal

Inline Homogenizer Emulsification Pump Manufacturer

Donjoy Technology is Inline Homogenizer Emulsification Pump manufacturer in China, manufacture sanitary pump and valve more than 27years. The Inline Homogenizer Emulsification Pump mechanical seal is cooperative researched and developed with the European Swedish company. The mechanical seal is designed with pressure balance and super long working life, easily disassemble and maintenance without special tools. Complied with EU EHEDG, USA 3-A-02-11, FDA1772600.

Mechanical seal configurations:

  1. SIC/C/EPDM  Standard others are options
  2. SIC/C/FKM
  3. SIC/C/HNBR
  4. SIC/SIC/EPDM
  5. SIC/SIC/FKM
  6. SIC/SIC/HNBR
  7. TC/TC/EPDM
  8. TC/TC/FKM
  9. TC/TC/HNBR



Inline Homogenizer Emulsification Pump Connection

Inline High Shear Homogenizer Pump Connection

Inline Homogenizer Emulsification Pump Data

Inline Homogenizer Pump Data

Hygienic centrifugal pump packing

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
