Custom Block Body Diaphragm Valve

Manual or pneumatically actuated custom block body diaphragm valve is the latest design, in order to improve the large welded multiple valves and tubing assemblies to a smaller compact diaphragm valve. Optimized the self-emptying ability, reduce the contract area, deal leg, prevent medium retention. Meet the ultra-clean demand in the pharmaceutical industry. Donjoy will custom design valves specifically for your process requirements.

Details about Custom Block Body Diaphragm Valve

Specification

Size

D25-DN100, 1" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L

Temperature

-20℃ to +150 ℃

Pressure

Regular 6bar

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic actuator

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Custom Block Body Diaphragm Valve description:

Manual or pneumatically actuated custom block body diaphragm valve is the latest design, in order to improve the large welded multiple valves and tubing assemblies to a smaller compact diaphragm valve. Optimized the self-emptying ability, reduce the contract area, deal leg, prevent medium retention. Meet the ultra-clean demand in the pharmaceutical industry. Donjoy will custom design valves specifically for your process requirements.



Custom Block Body Diaphragm Valve

● Zero dead leg.
● Compact structure and small installation space.
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4). Meet ASME BPE standard
● Different size path combinations are available.
● Save joint, pipe welding work.
● Manual type, Air actuator, Control TOP and Positioner are available.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ASME / BPE.
● 100% hydraulic tested / 100% inspected.



Surface Finish:

» Wetted Interior:
– Standard:
• ASME BPE SF1, 20 Ra μin (0,5 Ra μm)
• ASME BPE SF5, 20 Ra μin (0,5 Ra μm) Electropolish
– Optional:
• ASME BPE SF4, 15 Ra μin (0,4 Ra μm)
Electropolish. Better finish upon request.
» Exterior:
– Standard: 40 Ra μin (1,0 Ra μm) and better upon request



Custom Block Valve Multi-port Diaphragm Valve

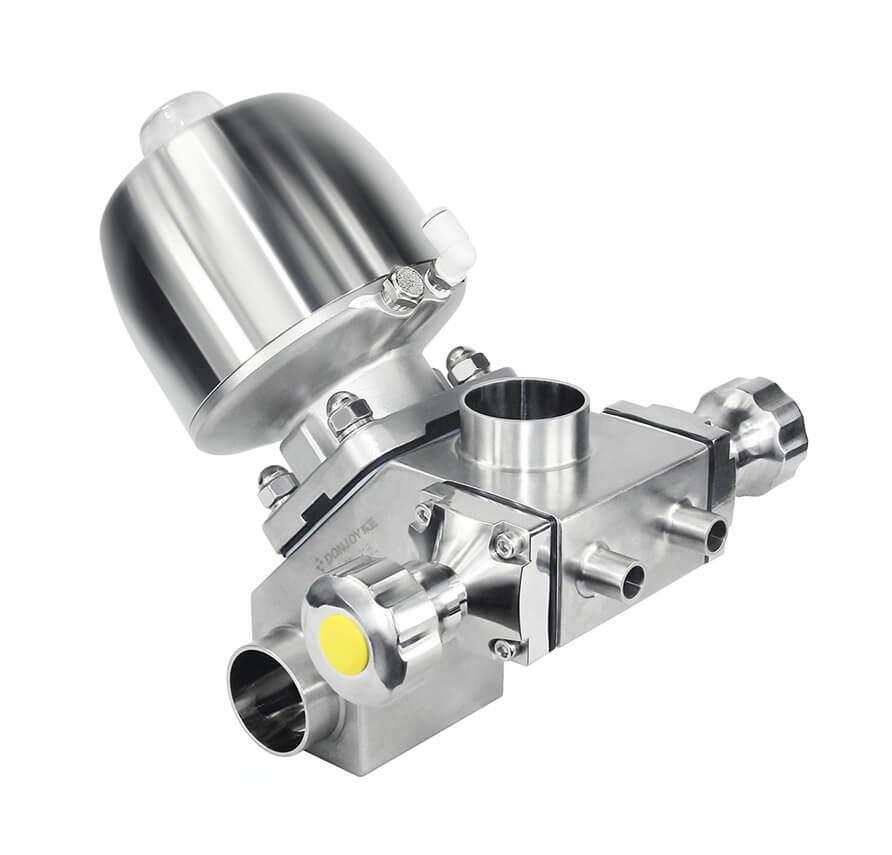

Custom Block Body Diaphragm Valve 1

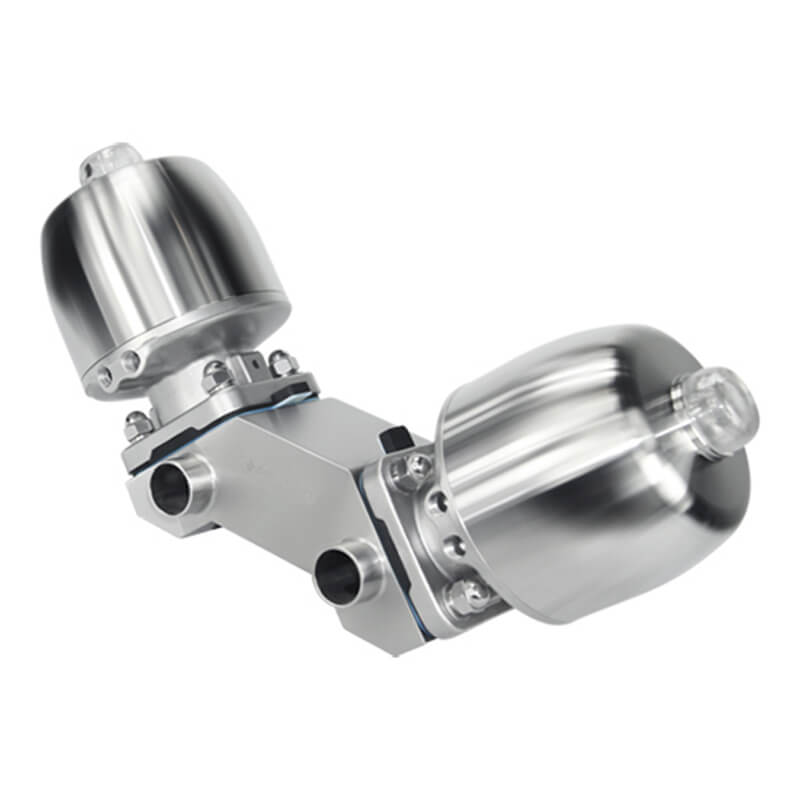

Custom Block Body Diaphragm Valve 2

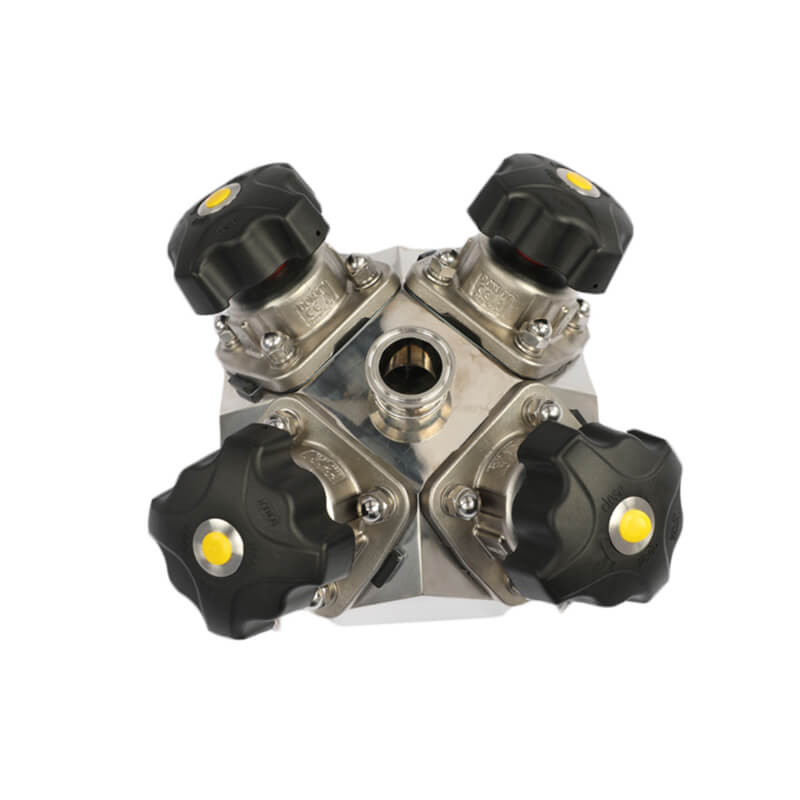

Sanitary Multi-port Diaphragm Valve Various Models

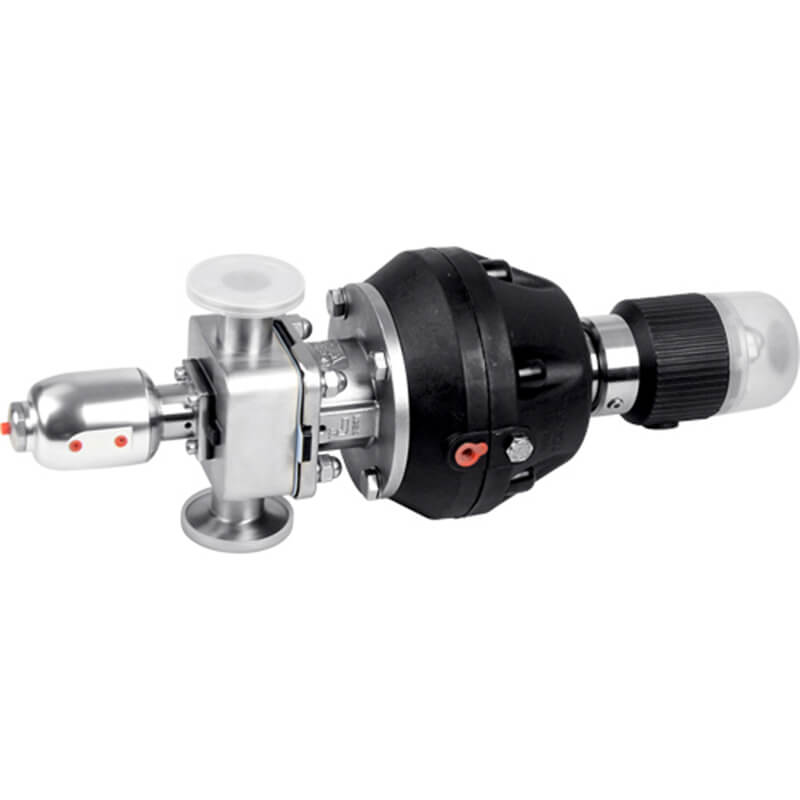

Custom Block Body Diaphragm Valve 3

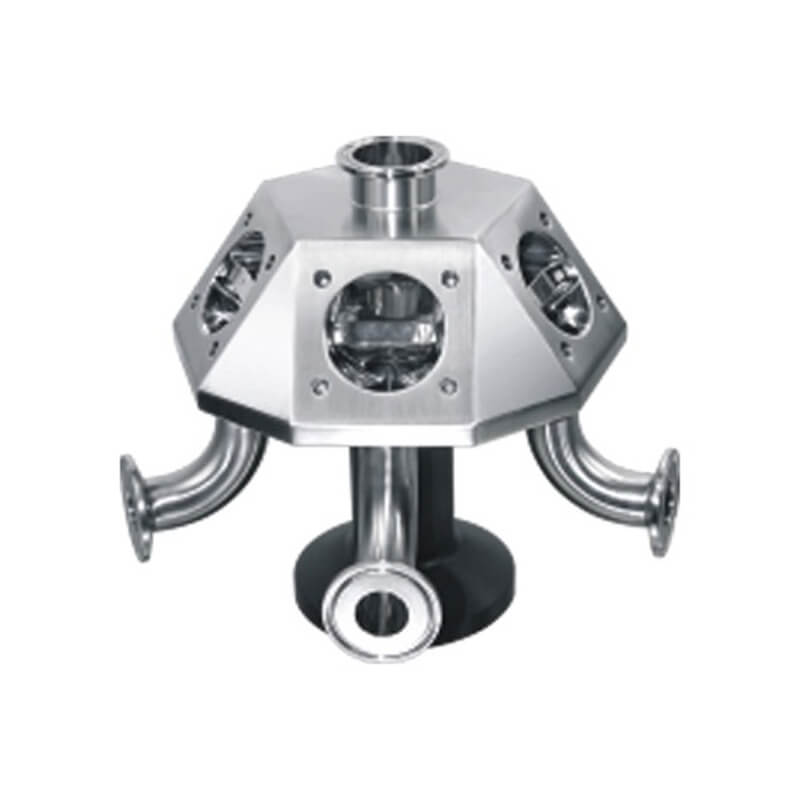

Custom Block Body Diaphragm Valve 4

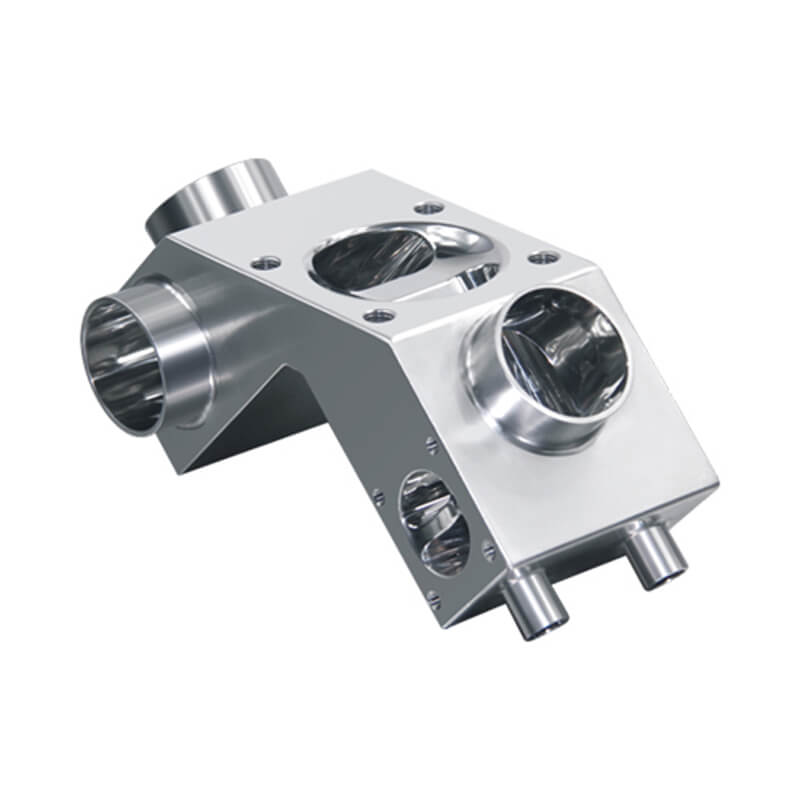

Custom Block Body Diaphragm Valve 5

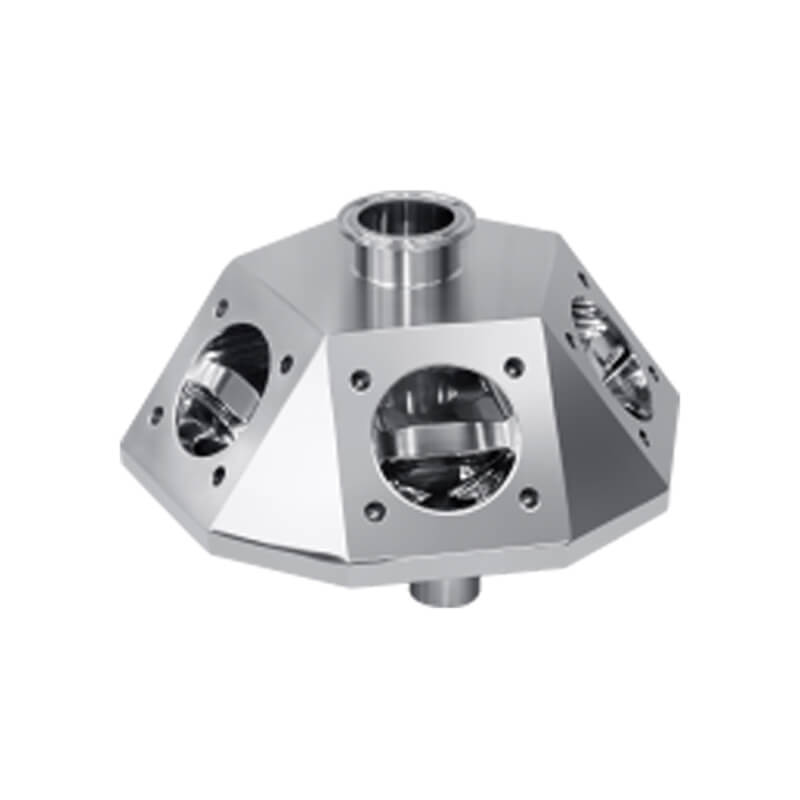

Custom Block Body Diaphragm Valve 5

Custom Block Body Diaphragm Valve 6

Custom Block Body Diaphragm Valve 7

Custom Block Body Diaphragm Valve 8

Custom Block Body Diaphragm Valve 9

Custom Block Body Diaphragm Valve 10

Custom Block Body Diaphragm Valve 11
Custom Block Body Diaphragm Valve 11

Custom Block Body Diaphragm Valve 12



Hygienic valve packing

Our sanitary diaphragm valve use for customer’s pharmaceutical project

Diaphragm Valve Use for Customers ProjectDiaphragm Valve Use for Customers Project 2
