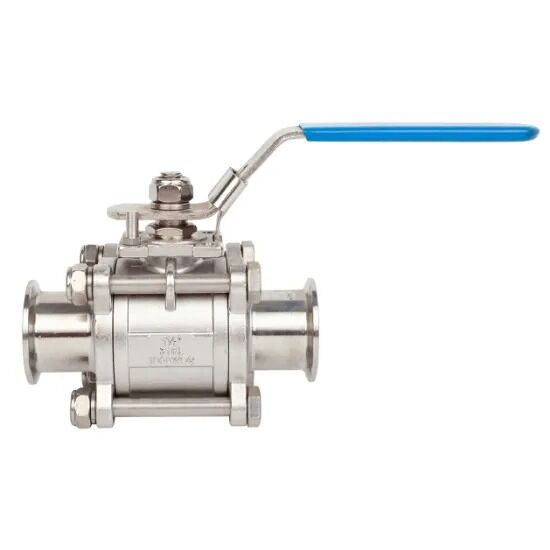

Stainless Steel 3-Piece Ball Valve

Stainless Steel 3-piece Ball Valve Full Bore with PTFE seat design, no dead angle. Manufactured from premium grade Stainless 304 or 316L, ensuring that it remains incredibly strong as well as to prevent rust. The 3-piece ball valve is WOG rating,1000psi designed to used in water, oil, gas, food & beverage processing, pharmaceutical and daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.

Details about Stainless Steel 3-Piece Ball Valve

Specification

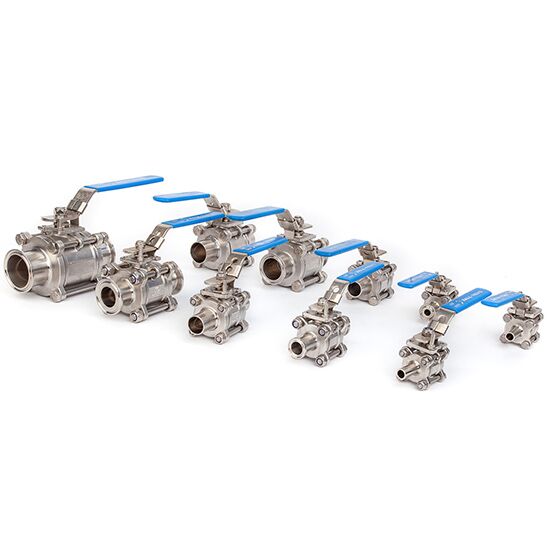

Size

DN10-DN100, 1/2" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

CE PED / 97/23 / EC, 3-A,FDA Certification

Connection type

Clamp End, Thread End, Weld End

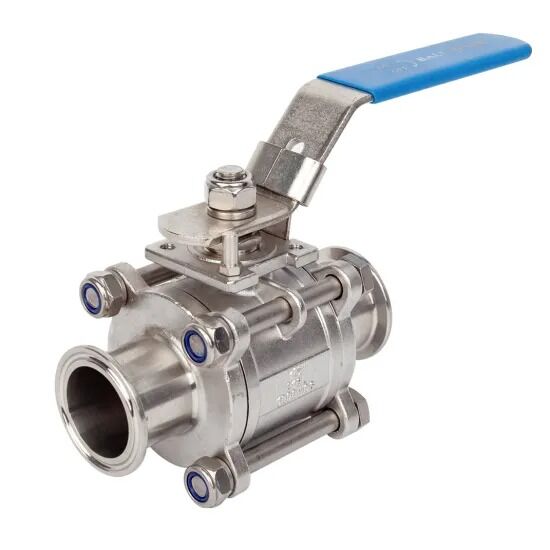

Stainless Steel 3-Piece Ball Valve

Stainless Steel 3-piece Ball Valve Full Bore with PTFE seat design, no dead angle. Manufactured from premium grade Stainless 304 or 316L, ensuring that it remains incredibly strong as well as to prevent rust. The 3-piece ball valve is WOG rating,1000psi designed to used in water, oil, gas, food & beverage processing, pharmaceutical and daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.



DONJOY Stainless Steel 3-Piece Ball Valve description:

Donjoy ball valve is designed to meet high requirement of the United States 3-A-68-00 standard, with features of small torque, long lifetime, full degreasing, sealing elastic compensation, small size, no dead angle non-retention. It’s cost-effective, easily maintained, no need additional tools.



Stainless Steel 3-Piece Ball Valve Feature:

● Manufactured from premium grade Stainless 304 or 316L.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional).
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● Manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.
● Repair Kits available consisting of seats and bushings.



Hygienic Ball Valve Construction

Donjoy 3-Piece Ball Valve Valve Advantage

1.We manufacture ball valve more than 20years, manufactured more than 1million pcs of the ball valve.

2.Updated and optimized ball valve for many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.

3. Super small torque, long lifetime

4.Seal imported from Denmark



Why use a 3 piece ball valve?

For processes that put heavy demands on valves, having a 3 piece valve is more convenient than one or two-piece ball valves. When seats and seals need to be routinely replaced, having three pieces allows for easy disassembly, servicing and reassembly without having to do major cutting on the pipe.

Three-piece ball valves also allow for elastomers to be changed to accommodate different process conditions, temperatures, pressures and flows.



3-piece Ball Valve Dimension

The curve for ball valve working pressure and work temperature



Hygienic valve packing

Our Ball valve use for customer’s project

Sanitary Ball Valve for Customers projectSanitary Ball Valve use for Customers project
